UPS Replacement Batteries: How to Choose, Replace, and Buy the Right One

Last Updated: July 2026

A UPS replacement battery is the rechargeable sealed lead-acid or lithium battery that powers an uninterruptible power supply during an outage. It is almost always the first part of a UPS to wear out, and replacing it on schedule is what keeps the unit ready to protect your equipment. This guide covers how to tell when yours needs replacing, how to find the exact battery your model takes, what to expect from lead-acid versus lithium, and how to replace it safely.

What Is a UPS Replacement Battery?

A UPS replacement battery is the internal power cell you swap into an uninterruptible power supply once the original battery can no longer hold a full charge. The UPS electronics (the inverter, charger, and circuitry) typically last well beyond the battery, so when a UPS starts failing, the battery is usually the cause rather than the unit itself.

Most consumer and small-business UPS units use sealed lead-acid batteries, specifically the valve-regulated lead-acid (VRLA) type, often built with absorbed glass mat (AGM) construction. These are maintenance-free, spill-proof, and designed to sit on standby float charge for years. Larger and newer systems increasingly offer lithium iron phosphate (LiFePO4) options.

Replacing the battery rather than the whole unit is both cheaper and greener: a fresh battery restores full runtime for a fraction of the cost of a new UPS, and the old battery is recyclable.

How Do You Know When Your UPS Battery Needs Replacing?

Your UPS battery needs replacing when runtime drops sharply, the unit reports a battery fault, or the battery is simply past its service age. Watch for these signs:

• Shorter runtime. The clearest warning. A battery that once held your load for 15 minutes but now lasts two or three is losing capacity.
• Battery or fault warnings. Most units beep and show a "Replace Battery" indicator or fault code after a failed self-test.
• A failed self-test. Many UPS units run periodic self-tests. Repeated failures point to the battery.
• Age. If the battery is more than three to five years old, plan to replace it even if it still tests as acceptable.
• Physical swelling or leakage. A bulging case or any residue means replace it immediately and stop using the unit until you do.
• Overheating. A battery that runs hot is degrading and should be replaced.

If you see any of these, test the unit under load if you can, then order a replacement before the battery fails completely. A UPS with a dead battery offers no protection at all.

How Long Do UPS Batteries Last?

Most sealed lead-acid UPS batteries last three to five years under normal operating conditions. Usable runtime, however, starts declining noticeably after about three years, well before the battery fails outright, which is why the runtime test above matters more than the calendar.

Lifespan depends heavily on conditions:

• Temperature is the biggest factor. As a widely used engineering rule of thumb, lead-acid battery life roughly halves for every increase of about 8 to 10 degrees Celsius above the ideal 25°C (77°F). A UPS in a hot server closet will not reach five years.
• Discharge cycles. Frequent deep discharges shorten life faster than occasional short outages.
• Charge quality. A healthy charger that holds a proper float voltage extends life.

Cybernetic or Lithium (LiFePO4) UPS batteries generally last longer, commonly eight to ten years, and tolerate heat and cycling far better, which is part of why they command a higher upfront price.

What Type of Battery Does Your UPS Use?

Nearly all standby and line-interactive UPS units in homes and small offices use 12-volt sealed lead-acid (VRLA/AGM) batteries. Larger units string several of these together to reach higher voltages. The two things that define the battery you need are its voltage and its capacity in amp-hours (Ah).

A typical small desktop UPS uses one or two 12V batteries rated around 7Ah to 9Ah. Rack and enterprise units use multiple higher-capacity cells. You do not choose these ratings freely: they must match what the UPS was built for.

Lithium iron phosphate is the main alternative. It weighs less, tolerates heat better, and lasts longer, but it is not always a drop-in replacement for a UPS that was engineered around lead-acid charging profiles. For most existing units, a like-for-like sealed lead-acid replacement is the correct and safe choice.

How Do You Find the Right Replacement Battery for Your UPS?

The fastest way to find the right replacement is to match your UPS model number or the manufacturer's battery cartridge number to a compatible battery. There are three reliable paths:

1. By UPS model number. Find the model on the label on the back or bottom of your unit (for example, an APC Back-UPS or Smart-UPS model number). A fitment lookup maps that model to the correct battery.
2. By battery cartridge number. Many manufacturers assign a replacement number to the battery pack itself. APC, for instance, uses RBC (Replacement Battery Cartridge) numbers like RBC2 or RBC7. If you know that number, you can order directly.
3. By the physical battery specs. Pull the existing battery and read four things off it: voltage (usually 12V), capacity (for example 9Ah), terminal type, and physical dimensions. Match all four.

Terminal type matters and is easy to overlook. Small batteries use faston tab terminals, commonly F1 (0.187 inch) or F2 (0.250 inch), while larger batteries use nut-and-bolt terminals. The wrong terminal will not connect properly even if the voltage and capacity are correct.

When in doubt, match voltage and capacity exactly, and confirm the terminal and dimensions before ordering. Equal or slightly higher Ah is generally acceptable; lower Ah reduces your runtime.

SLA vs. Lithium UPS Batteries: Which Should You Choose?

For most existing UPS units, sealed lead-acid is the right choice because it matches how the unit was designed to charge, and it costs far less upfront. Lithium makes sense when long service life, heat tolerance, and low maintenance justify the higher price, and when the UPS supports it.

Bottom line: replace like for like unless your unit explicitly supports lithium and the longer life pays back the price difference over your replacement cycle.

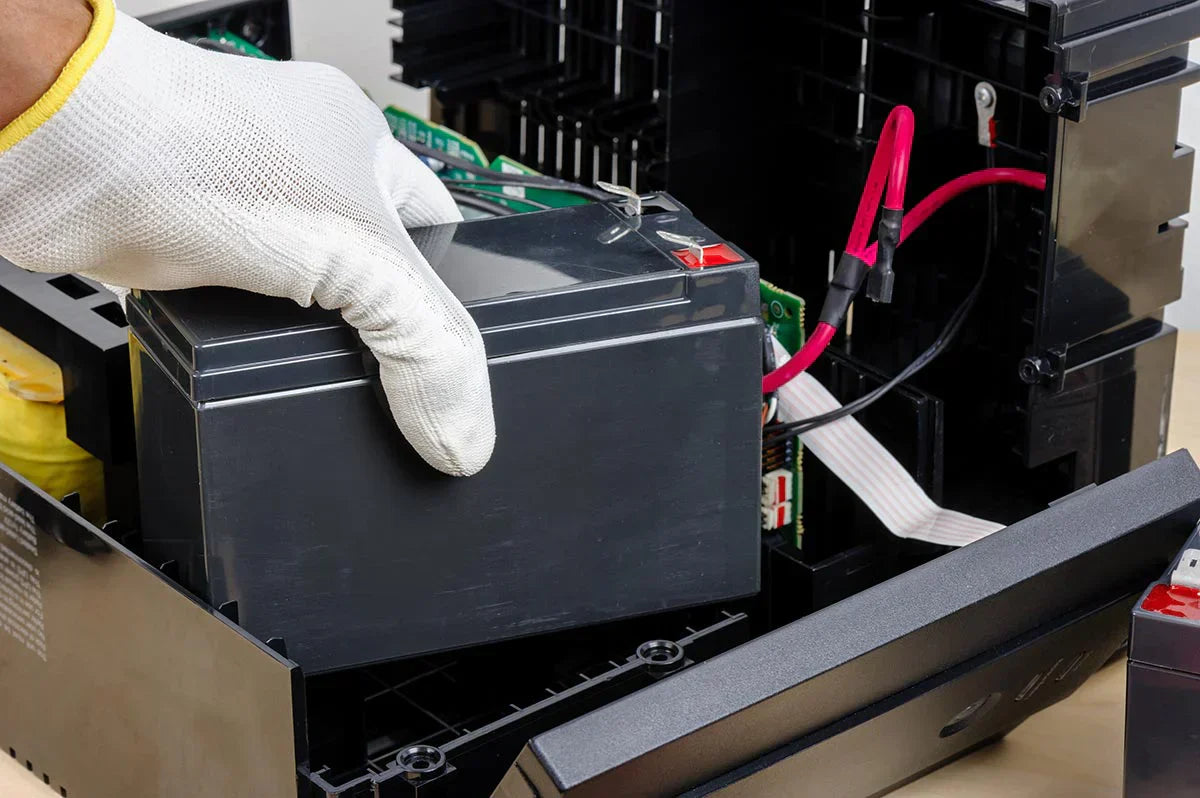

How Do You Replace a UPS Battery Safely?

Replacing a UPS battery is a straightforward task on most consumer and small-business units, but you are handling live electrical components, so follow these steps carefully:

1. Confirm you have the correct replacement (voltage, capacity, terminal type, dimensions) before you start.
2. Save your work and shut down connected equipment so nothing is lost if the unit powers off during the swap.
3. Turn off and unplug the UPS. Do not skip this. The battery itself remains live, but the unit should be disconnected from the wall.
4. Open the battery compartment. On desktop units this is usually a panel on the underside or back; rack units have a front bezel or removable tray.
5. Disconnect the old battery, noting terminal polarity and wire positions. Take a photo first if you are unsure.
6. Remove the old battery. Lead-acid batteries are heavy for their size, so support the weight.
7. Install the new battery in the same orientation, reconnecting terminals to match polarity exactly.
8. Close the compartment, plug in, and power on. Let the unit recharge fully (often several hours) before relying on it, then run a self-test.
9. Recycle the old battery rather than throwing it away.

If your unit is a large rack or three-phase system, or if the battery is hardwired, have a qualified technician handle the replacement.

Buying UPS Replacement Batteries in Bulk

Organizations that run many UPS units face a different problem than individuals: they need consistent supply, predictable cost, and confidence that every replacement is the correct fit. Buying in bulk addresses all three.

• Lower per-unit cost. Wholesale pricing reduces the cost of each battery, which adds up quickly across a fleet of units.
• Guaranteed availability. Keeping a ready supply on hand means a failed battery gets swapped the same day rather than waiting on a one-off order, minimizing downtime.
• Compliance and continuity. Facilities with sensitive data or regulatory requirements often need documented, scheduled battery replacement. A reliable supplier and inventory make that routine.
• Simplified procurement. A single source with an easy reorder process saves time for IT and operations teams managing dozens or hundreds of units.

For any organization replacing more than a handful of batteries a year, a bulk relationship with a supplier that stocks depth in common UPS batteries is usually more cost-effective and more reliable than piecemeal ordering.

Why Buy UPS Replacement Batteries from BatteryClerk?

BatteryClerk is manufacturer and a direct seller of UPS replacement batteries under its AJC Battery brand, which means you buy quality-controlled batteries without a reseller markup. A few reasons customers choose BatteryClerk:

• Manufacturer-direct quality. Because BatteryClerk makes the batteries it sells, each one is built and tested to a consistent standard, which supports reliable backup and a strong base of repeat customers.
• Broad fitment coverage. The catalog spans batteries for a wide range of UPS models and capacities, from single home-office units to large enterprise fleets, so most customers can find an exact-fit replacement.
• Guidance on the right fit. The website is built to help you match your UPS to the correct battery, and the customer service team can confirm compatibility, which prevents the damage and reduced life that come from installing the wrong battery.
• Competitive and wholesale pricing. Pricing is designed to be cost-effective for individuals and especially for businesses buying in bulk.
• Deep inventory and fast shipping. UPS replacement batteries are among the most-ordered items, kept in stock in depth so orders (including repeat bulk orders) ship promptly.
• Recycling options. BatteryClerk offers eco-recycling for old batteries, whose components are largely recyclable or reusable.

How Should You Dispose of or Recycle an Old UPS Battery?

Never put a lead-acid UPS battery in household trash. Lead-acid batteries are among the most recycled products in the world, and their lead, plastic, and acid are recovered and reused. Recycle your old battery through one of these routes:

• Return it to the supplier. Many battery sellers, including BatteryClerk, offer recycling programs.
• Take it to a battery or auto-parts retailer that accepts lead-acid batteries for recycling.
• Use a municipal hazardous-waste or e-waste collection point.

Recycling keeps lead and acid out of landfills and returns materials to the supply chain, which is why battery recycling rates for lead-acid are so high.

Frequently Asked Questions

How often should I replace my UPS battery? Every three to five years for sealed lead-acid batteries, and sooner if runtime has dropped noticeably or the unit reports a battery fault. In hot environments, plan for the shorter end of that range.

Can I replace a UPS battery myself? Yes, for most desktop and small line-interactive units. Unplug the UPS, match the replacement exactly (voltage, capacity, terminal type, dimensions), swap it following polarity, and recharge fully before relying on it. Leave large rack, three-phase, or hardwired systems to a qualified technician.

How do I know which battery my UPS needs? Match your UPS model number or the manufacturer's cartridge number (such as an APC RBC number), or read the voltage, amp-hour capacity, terminal type, and dimensions directly off your existing battery, and find a replacement that matches all four. Put the model number in the search bar at the top of our page and see if there's a match!

Are all UPS batteries the same? No. They vary by voltage, capacity (Ah), terminal type, and physical size, and by chemistry (sealed lead-acid versus lithium). A battery must match your unit's requirements to work safely and deliver full runtime.

Is it cheaper to replace the battery or buy a new UPS? Replacing the battery is almost always cheaper. The UPS electronics typically outlast several battery cycles, so a fresh battery restores full performance for a fraction of the cost of a new unit.

Can I use a lithium battery in a lead-acid UPS? Only if the UPS is designed to support lithium. Lead-acid and lithium charge differently, so a lithium battery is not a universal drop-in replacement. For most existing units, replace with the same sealed lead-acid type.

What should I do with my old UPS battery? Recycle it. Check out our SLA Battery recycling page for details.
